Slope protection geocell

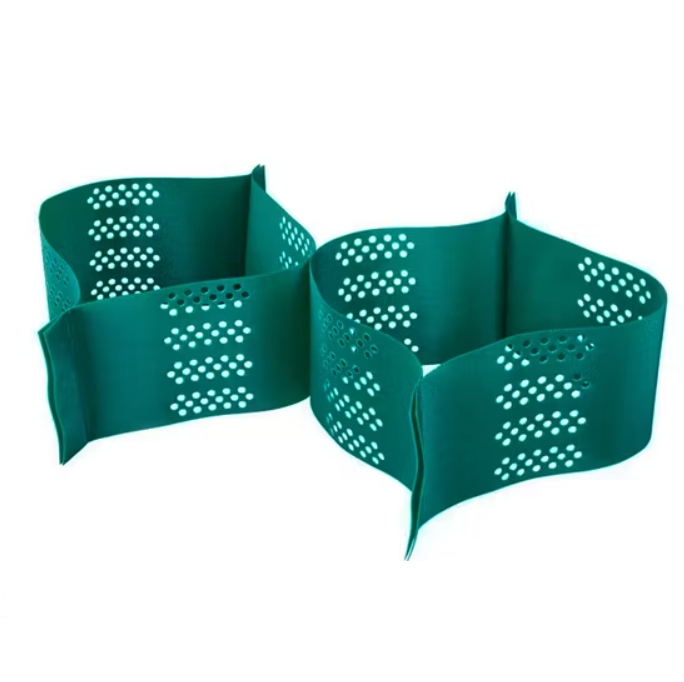

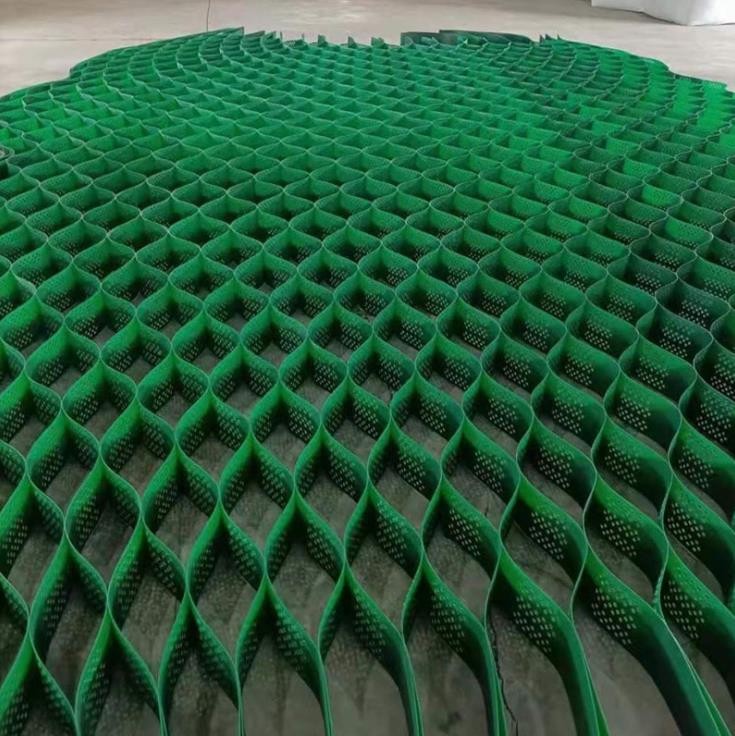

Slope protection geocells are a three-dimensional honeycomb network structure made of high-strength, high-density polyethylene (HDPE) or polypropylene (PP) sheets welded together by ultrasonic welding. The strong lateral constraints created by expansion securely bind fillers (such as sand, stone, soil, and concrete) within the cells, forming a high-strength, flexible composite cushion. This revolutionary solution is designed specifically for slope stability and soil erosion prevention.
WhatsApp：+86 18315841123
Email：salesjames.hao@hotmail.com
Inquiry Now →
Product Description

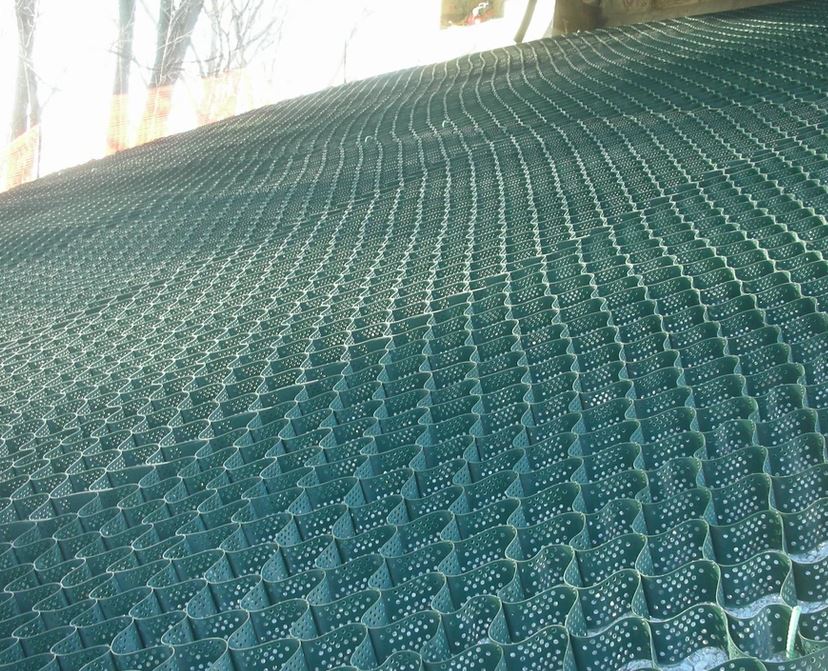

Slope protection geogrid is a new type of geosynthetic material widely used in slope protection engineering.

1. Powerful lateral limiting effect: It can effectively limit the lateral displacement of soil and enhance the stability of slopes.For example, in some soft soil slopes, the use of geogrids can significantly reduce the risk of landslides.

2. Good load dispersion ability: It can evenly distribute the upper load over a larger area, reducing local pressure.In road slope protection, it can withstand the vibration and pressure caused by vehicle driving.

3. Increase soil friction: Interact with the soil to increase the friction between the soil and enhance the overall shear strength.

Product Parameters
Item ModelHeight(mm)Welding distance(mm)Sheet thickness(mm)Seam peel strength≥(N)Expanded Cell Size(mm)Expandedpanel size (m)
smoothtextured
TGLG-100-3301003301.11.51420244X2032.44X6.15
TGLG-150-3301502130244X2032.44X6.15
TGLG-200-3302002840244X2032.44X6.15
TGLG-100-3561003561.11.51420259X2242.56X6.52
TGLG-150-3561502130259X2242.56X6.52
TGLG-200-3562002840259X2242.56X6.52
TGLG-100-4001004001.11.51420295X2504X5
TGLG-150-4001502130295X2504X5
TGLG-200-4002002840295X2504X5
TGLG-100-4451004451.11.51420320X2872.56X8.35
TGLG-150-4451502130320X2872.56X8.35
TGLG-200-4452002840320X2872.56X8.35
TGLG-100-6601006601.11.51420488X4062.44X12.29
TGLG-150-6601502130488X4062.44X12.29
TGLG-200-6602002840488X4062.44X12.29
TGLG-100-7121007121.11.51420508X4752.56X13.72
TGLG-150-7121502130508X4752.56X13.72
TGLG-200-7122002840508X4752.56X13.72
Product Application
