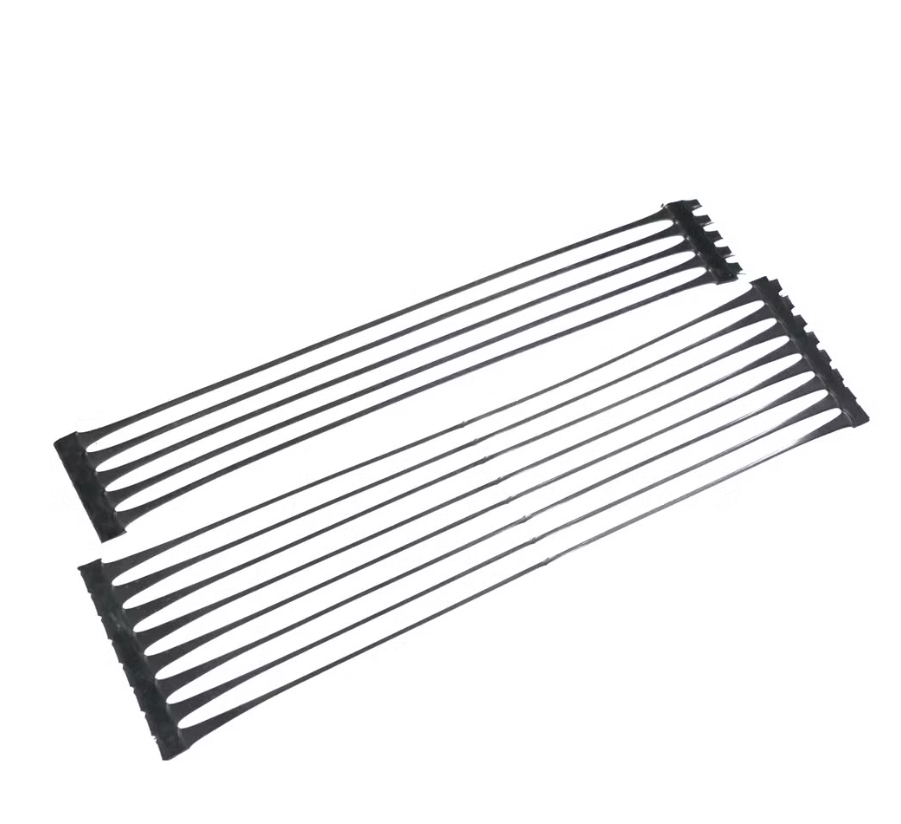

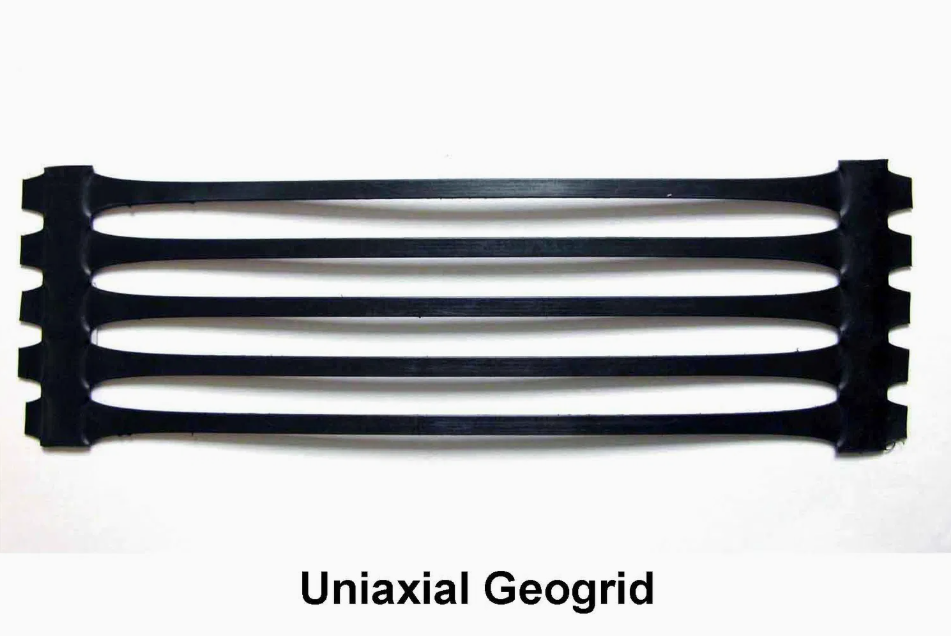

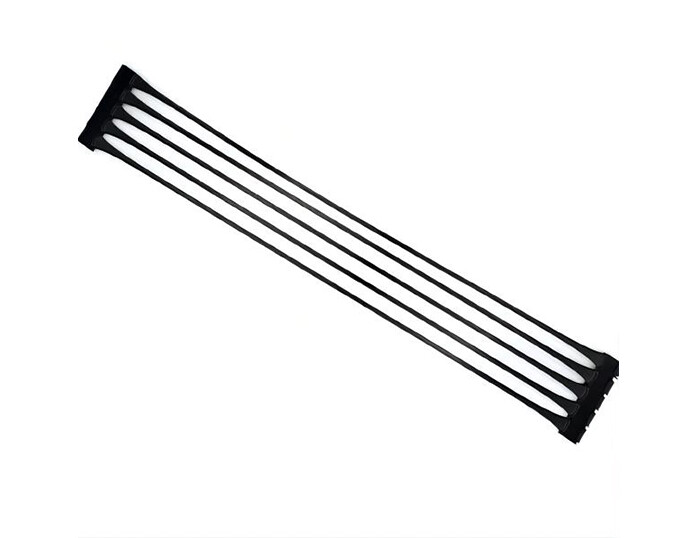

Uniaxial plastic geogrid
Uniaxially oriented plastic geogrid is a polymer mesh material made primarily from high-density polyethylene (HDPE) or polypropylene (PP). It is precision extruded, punched, and subjected to high-intensity directional stretching in the longitudinal (unidirectional) direction. This unique process aligns the polymer molecules along the stretching direction, resulting in extremely high tensile strength and modulus in that direction. It is specifically designed for reinforcement and strengthening projects requiring the ability to withstand strong tensile stress in a single direction.
Inquiry Now →
Product Description

Geobag is a kind of high strength anti-uv anti-freezing and thawing anti-acid and alkali ecological synthetic material, is a new high-tech special material, with high strength anti-uv anti-acid and alkali anti-corrosion anti-freezing and thawing can reach more than 50 years of non-degradation, is the real realization of zero pollution.Mainly used in the construction of flexible ecological slope.Eco-bag is a kind of good tool for protecting ecology, because it is resistant to moisture, does not absorb water, does not damage the bag, does not deform, and is insoluble in polluted liquid.


Application:

1.Eco-hydraulic Engineering:

Natural environment for both sides of the ecological river,soil and water conservation,reservoir fluctuation zone greening, wetland project, coastal engineering etc.


2.Highway Engineering:

Roadbed side slope,retaining wall project, massif excavate side slope,bridgepier slope protection,culvert exits and entrances "Eight word" wall,sound protective screen, ecological isolation strip,swelled ground side slope,freeze thawing district side slope etc.


3.Railway Engineering:

Roadbed side slope,retaining wall project, massif excavate side slope,slope protection,culvert exits and entrances"Eight word" wall,ecological beauty spot ecological district side slope,ecological fragile district ecological side slope etc.

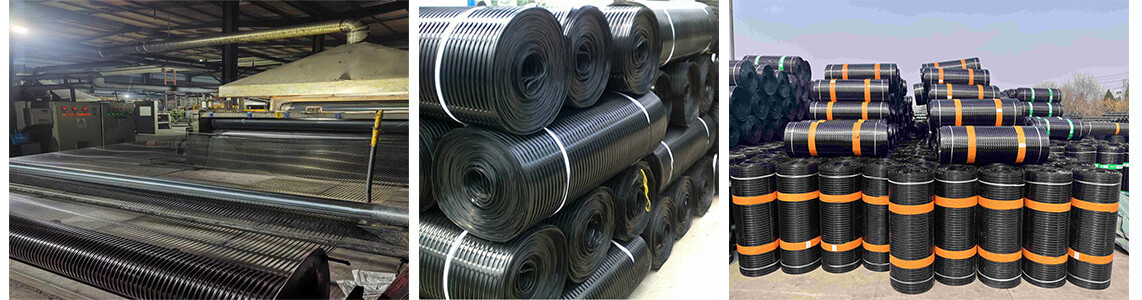

未标题-2


Product Parameters
PP single direction plastic geogrid
Specificationtensile strength(KN/m)tensile strength at 2% elongation(KN/m)tensile strength at 5% elongation(KN/m)Nominal elongation
TGDG35≥35.0≥10.0≥22.0≤10.0
TGDG50≥50.0≥12.0≥28.0
TGDG80≥80.0≥26.0≥48.0
TGDG120≥120.0≥36.0≥72.0
TGDG160≥160.0≥45.0≥90.0
TGDG200≥200.0≥56.0≥112.0


High-density polyethylene sing direction plastic geogrid
Specificationtensile strength(KN/m)tensile strength at 2% elongation(KN/m)tensile strength at 5% elongation(KN/m)Nominal elongation
TGDG35≥35.0≥7.5≥21.5≤11.5
TGDG50≥50.0≥12.0≥23.0
TGDG80≥80.0≥21.0≥40.0
TGDG120≥120.0≥33.0≥65.0
TGDG160≥160.0≥47.0≥93.0
TGDG200≥200.0≥55.0≥112.0
