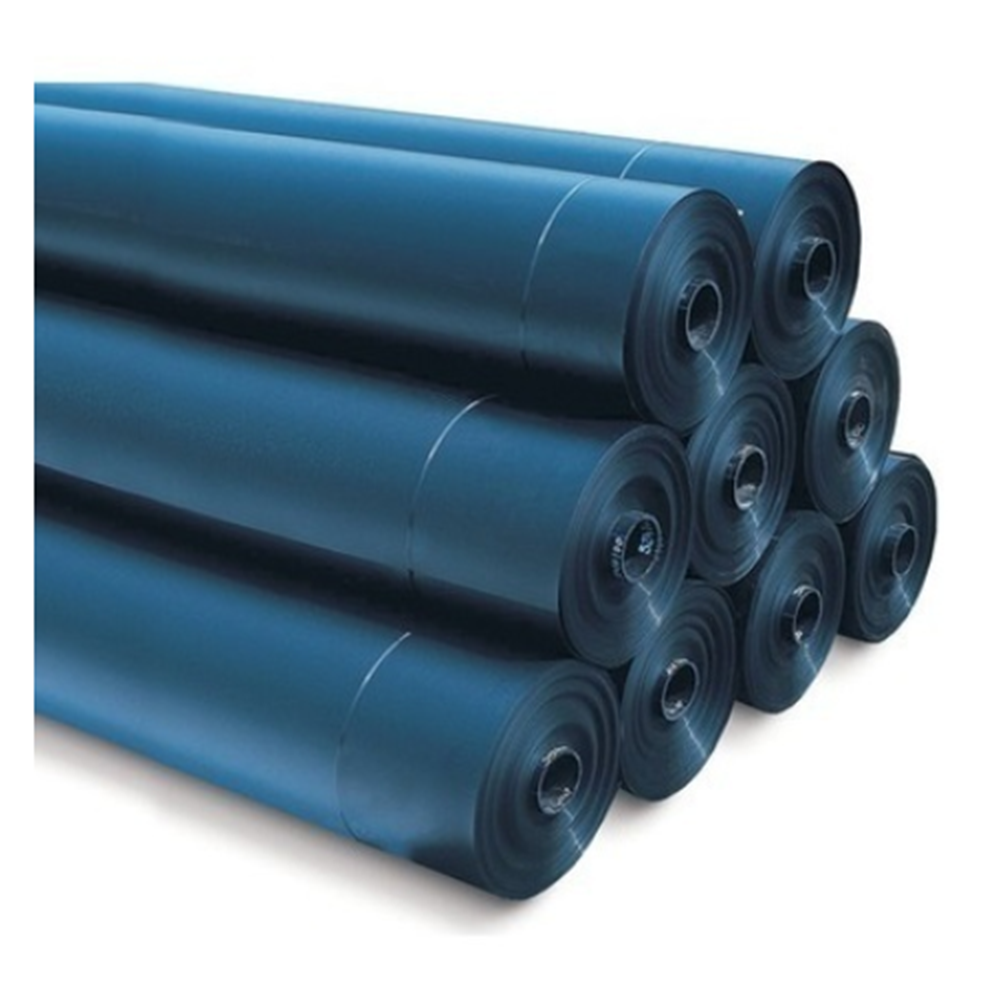

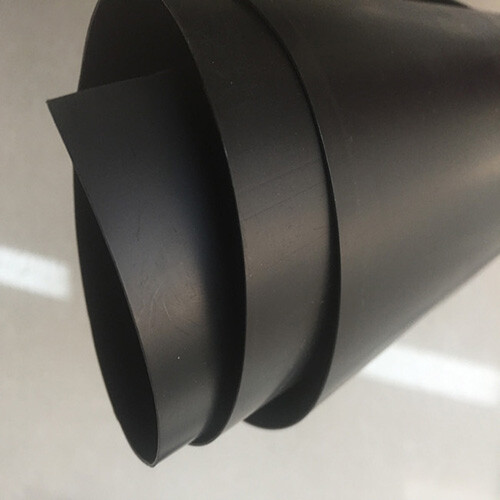

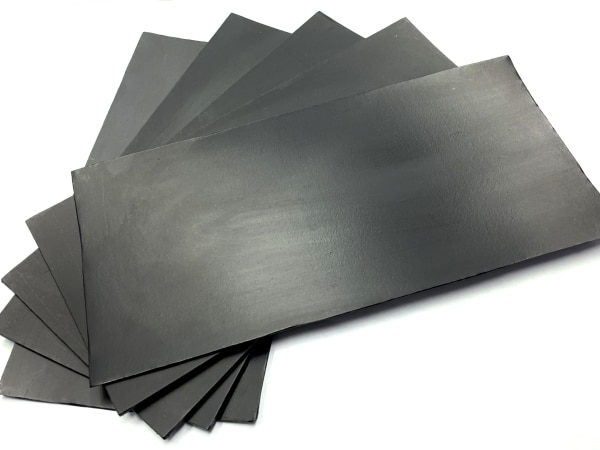

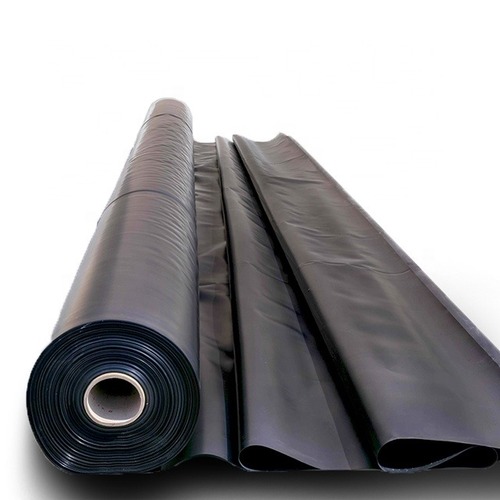

HDPE Geomembrane

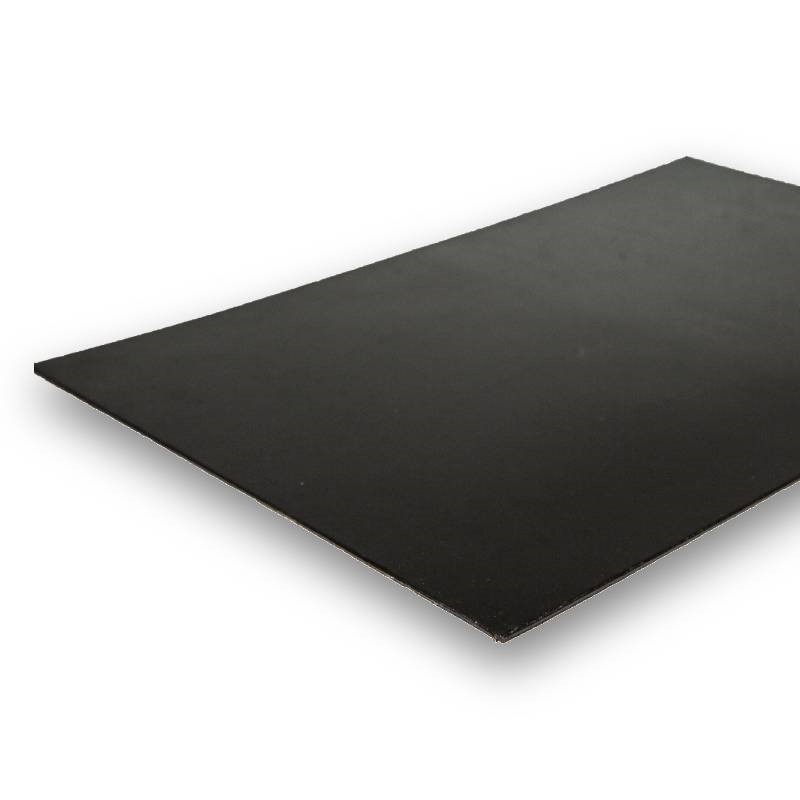

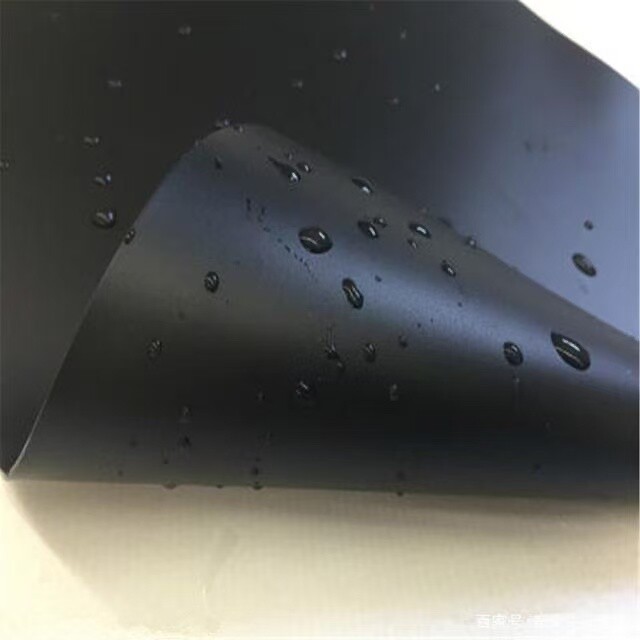

A HDPE geomembrane smooth is very low permeability synthetic membrane liner or barrier with smooth surface. It can be used solely or with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system.
Inquiry Now →
Product Description


A HDPE geomembrane smooth is very low permeability synthetic membrane liner or barrier with smooth surface. It can be used solely or with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system.

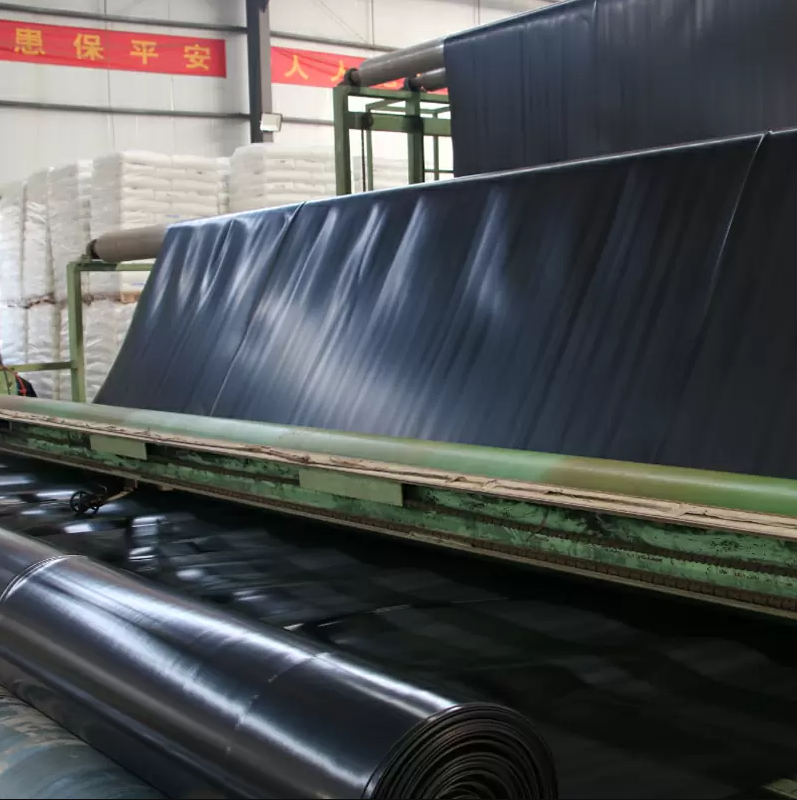

The manufacturing of HDPE geomembrane smooth begins with the production of the raw materials, which mainly include the HDPE polymer resin, and various additives such as carbon black, antioxidants, anti-aging agent, UV absorber, and other adjuvant. The HDPE resin and additives ratio is 97.5:2.5.


1)High anti-seepage ratio:

HDPE geomembrane has a great anti-seepage effect unmatched by ordinary waterproof materials, and is recommended in some projects with high anti-seepage requirements.It's Permeability property is ≤1.0*10-13g·cm/(cm2·s·pa).

2)Chemical Stability:

It has excellent stability, acid and alkali resistance, salt solution, oil, alcohol, etc., and is mostly used in sewage treatment and landfills.

3)Anti plant root system

HDPE geomembrane has excellent puncture resistance and resists most plant roots. It is a must-choice product for planting roofs.

4)Aging resistance

HDPE geomembrane has excellent anti-aging, anti-ultraviolet, anti-decomposition capabilities. Oven aging at 85℃, standard OIT, 55% retained after 90 days, oven aging at 85℃,high pressure OIT, 80% retained after 90 days.

5)High Mechanic strength

It has good mechanical strength, and is first choice for seepage prevention in water conservancy projects. The tensile strength ,tear resistance, and puncture resistance properties all meet GRI-GM13 standard.

6)Low cost

Compared with other traditional materials, HDPE geomembrane has obvious cost advantages and is the best product for water storage and anti-seepage.

7)Environmental protection formulation

The raw materials used HDPE geomembrane have reached relevant international standards, and are non-toxic and environmentally friendly. Widely used in drinking water ponds, breeding ponds, etc.

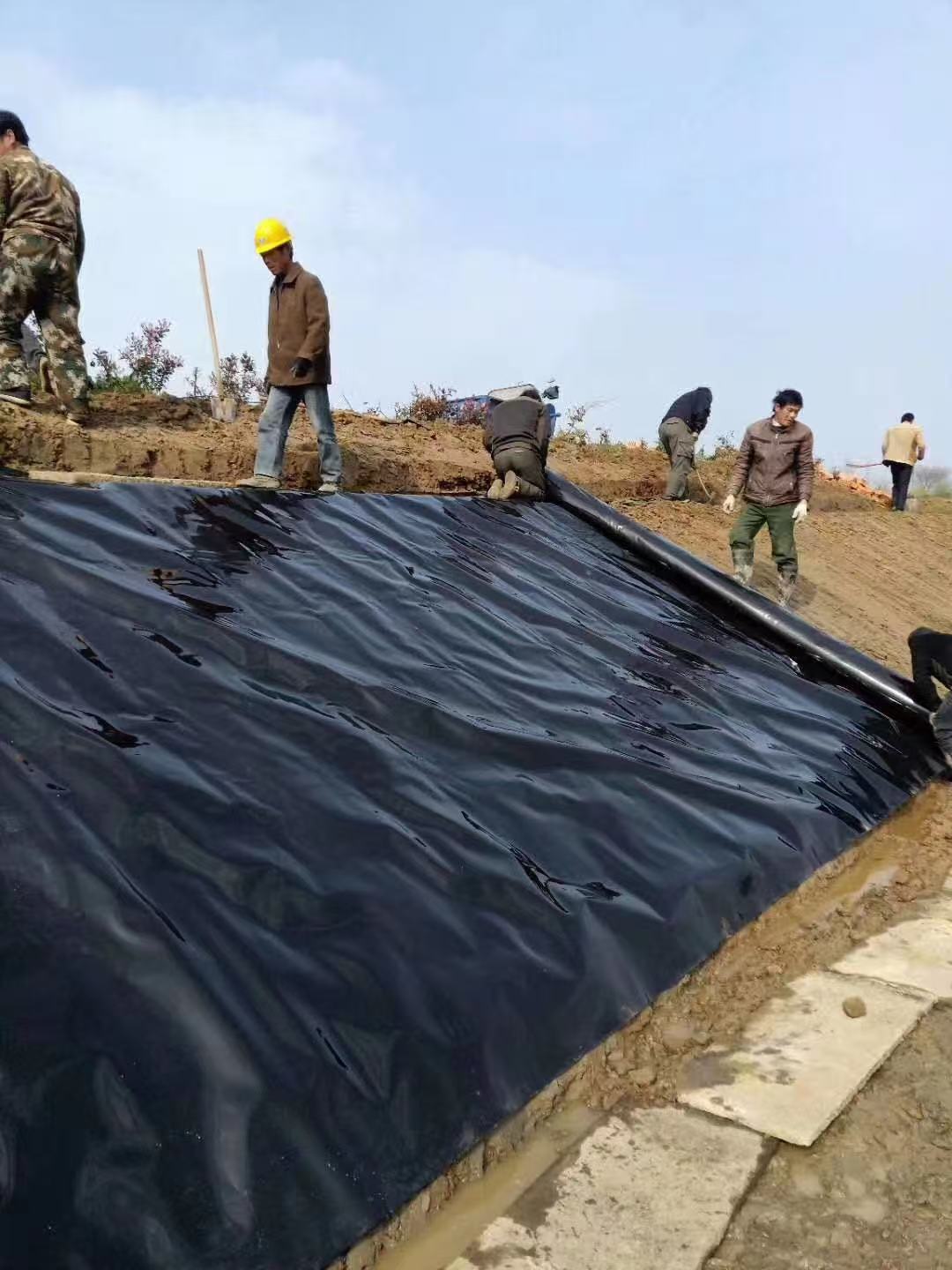

8)Rapid construction

Compared with other traditional materials, HDPE geomembrane can be laid in a variety of forms to meet different construction requirements.


Product Parameters
PropertiesTest MethodGMSH050GMSH075GMSH100GMSH150GMSH200
ThicknessASTM D51990.50 mm0.75 mm1.00 mm1.50 mm2.00 mm
DensityASTM D15050.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc
Tensile Properties





Yield strengthASTM D66937 kN/m11 kN/m15 kN/m22 kN/m29 kN/m
Break strengthType IV13 kN/m20 kN/m27 kN/m40 kN/m53 kN/m
Yield elongation
12%12%12%12%12%
Break elongation
700%700%700%700%700%
Tear ResistanceASTM D100462 N93 N125 N187 N249 N
Puncture ResistanceASTM D4833160 N240 N320 N480 N640 N
Stress Crack ResistanceASTM D5397500 hrs500 hrs500 hrs500 hrs500 hrs
Carbon Black ContentASTM D16032.0%2.0%2.0%2.0%2.0%
Carbon Black DispersionASTM D5596For 10 different views:9 in Categories 1 or 2 and 1 in Category 3
Oxidative Induction Time (OIT)ASTM D3895100 min.100 min.100 min.100 min.100 min.
UV ResistanceASTM D588550%50%50%50%50%
High Pressure OIT retained after 1600hrs

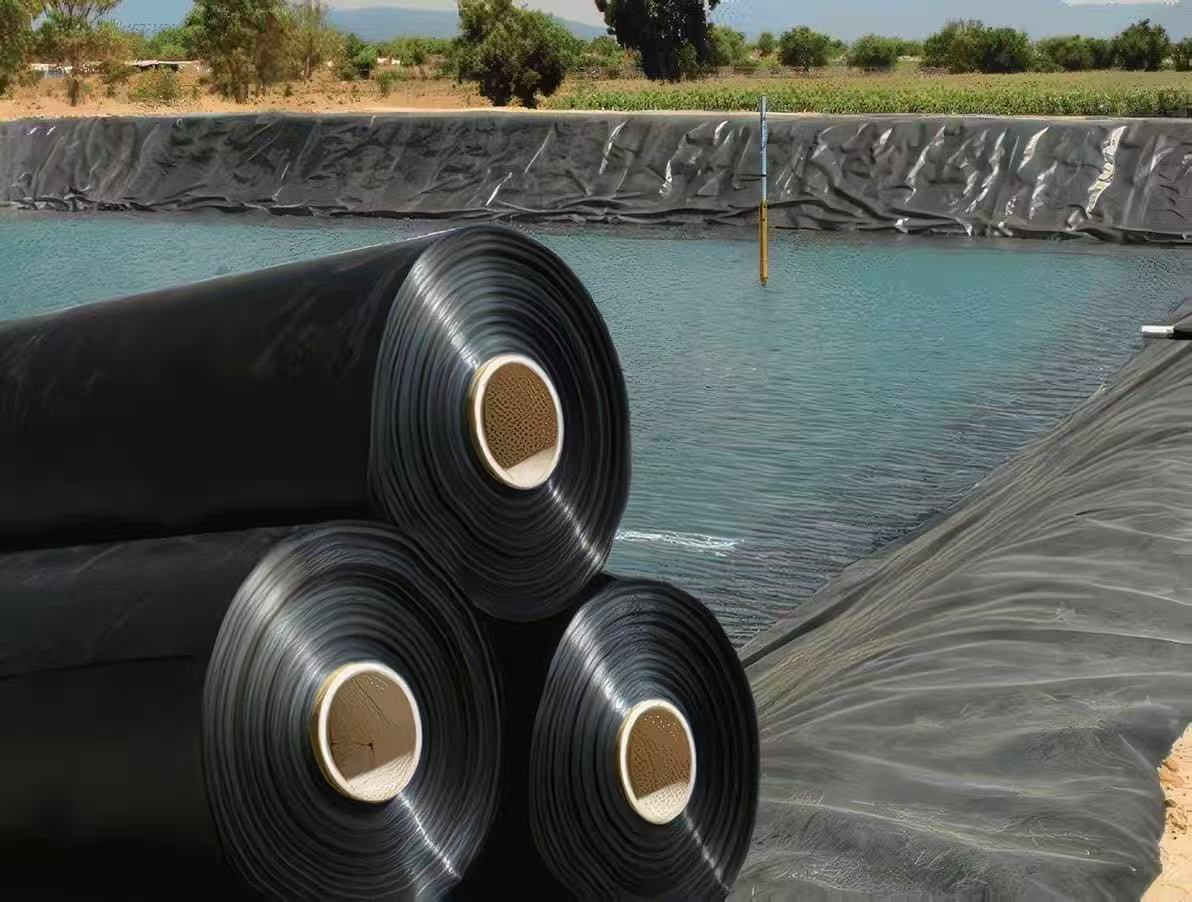

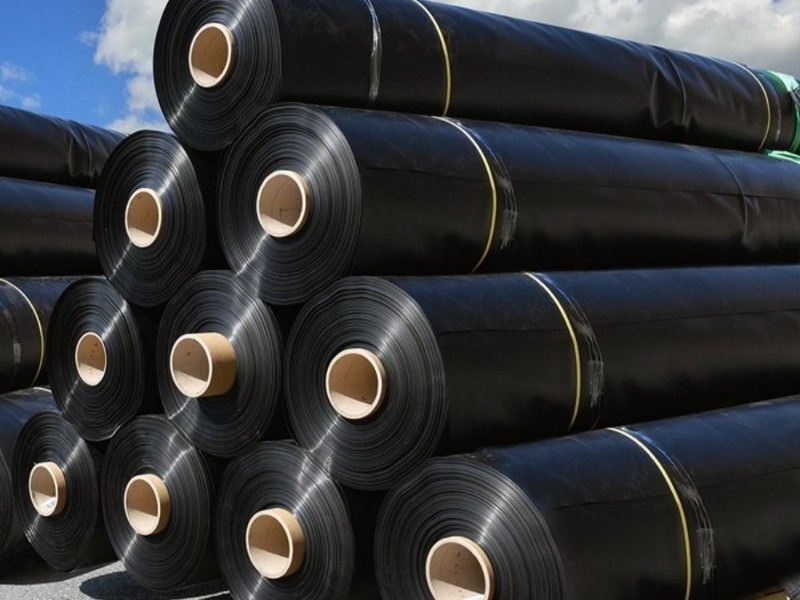

Roll Width (m)
77777
Roll Length (m)
420280210140105

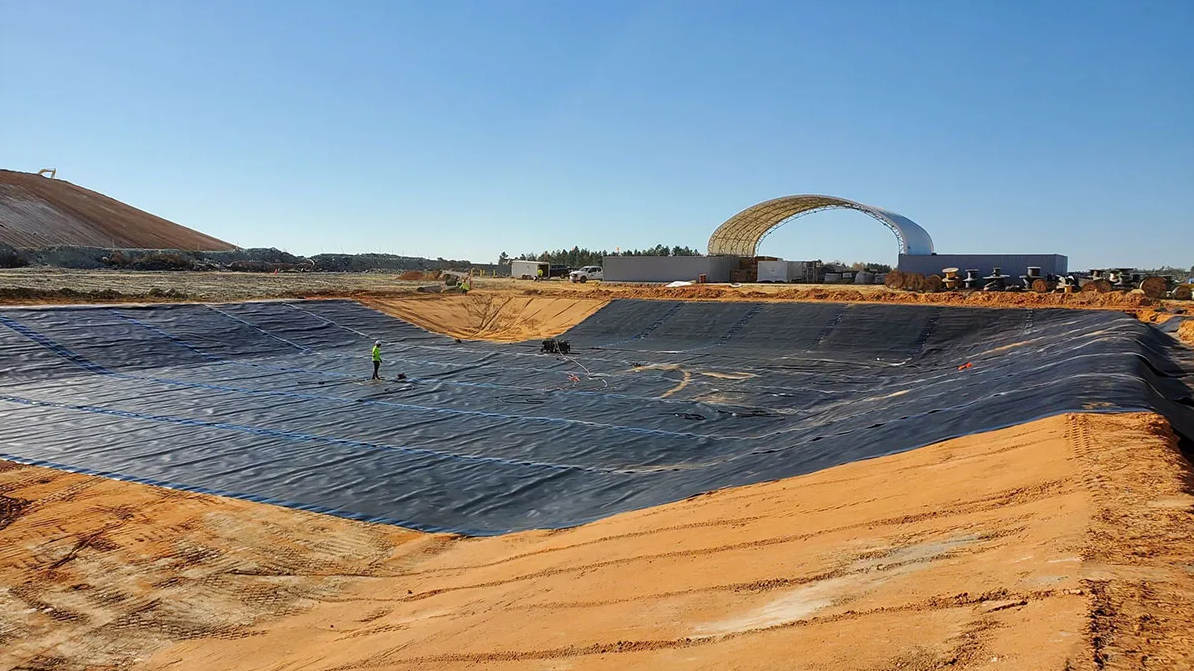

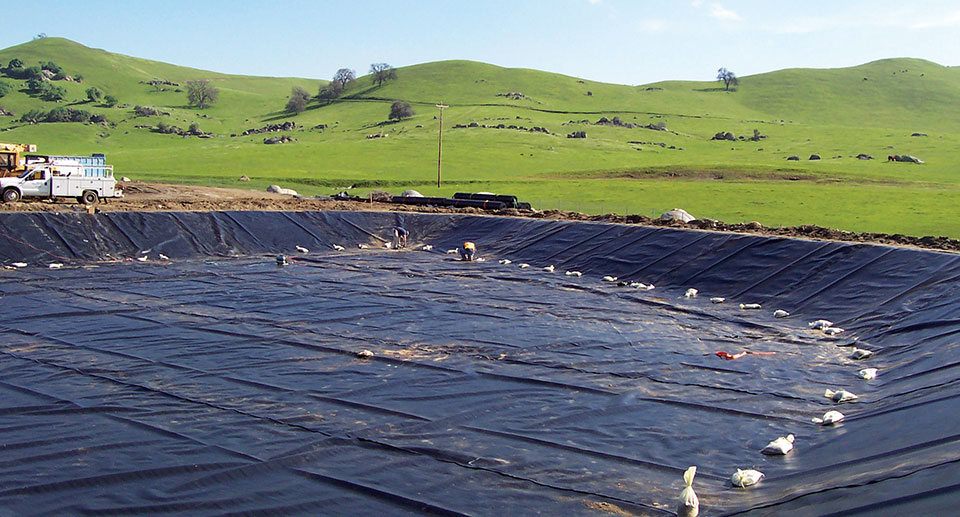

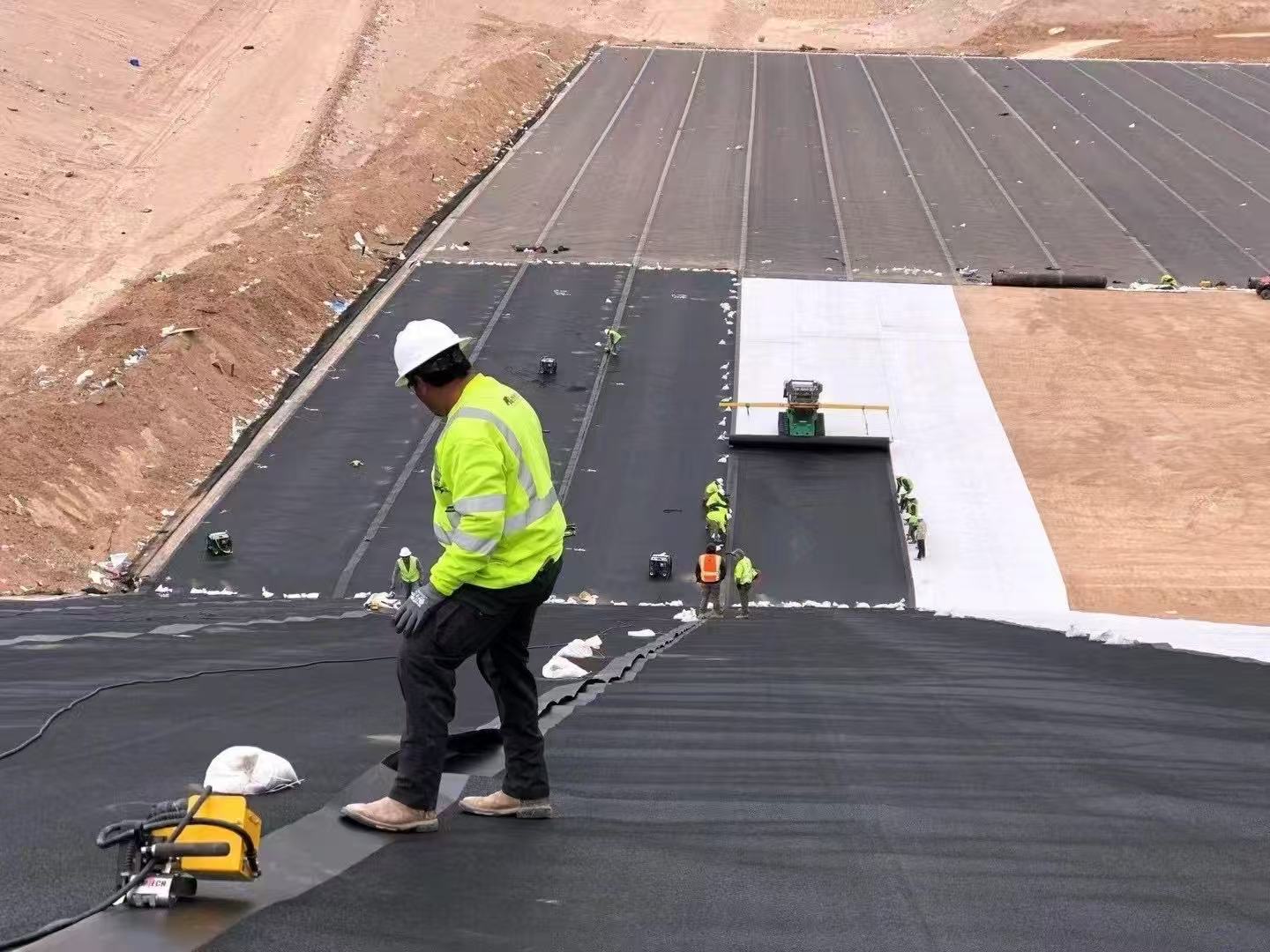

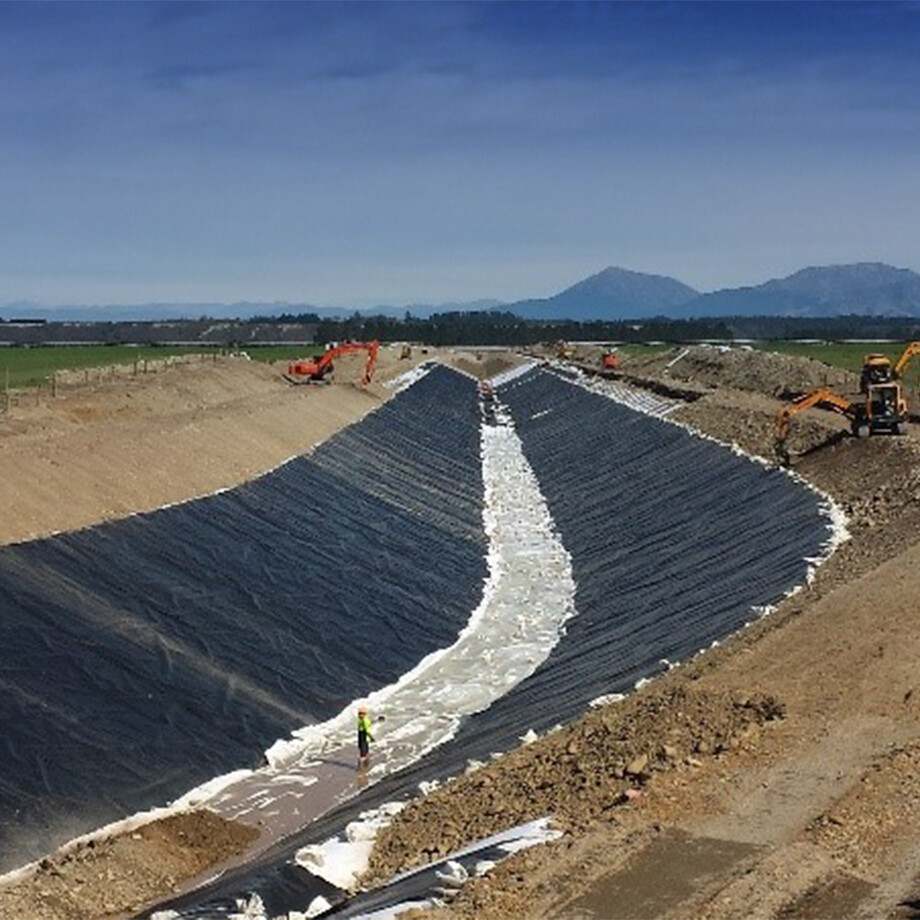

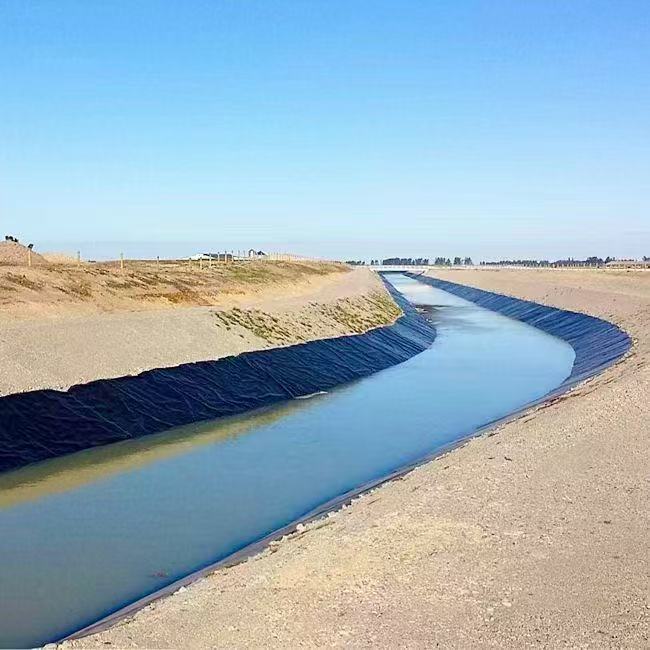

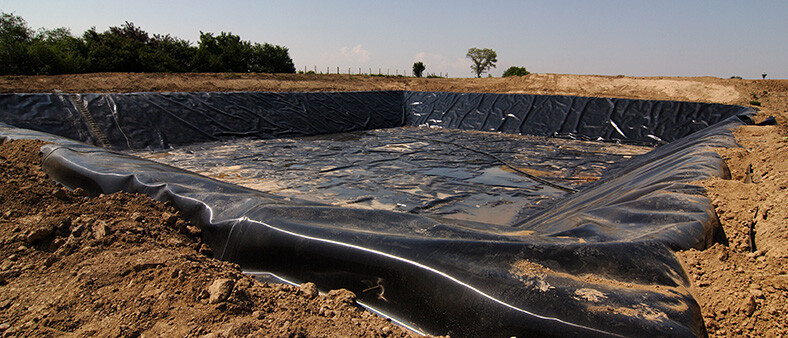

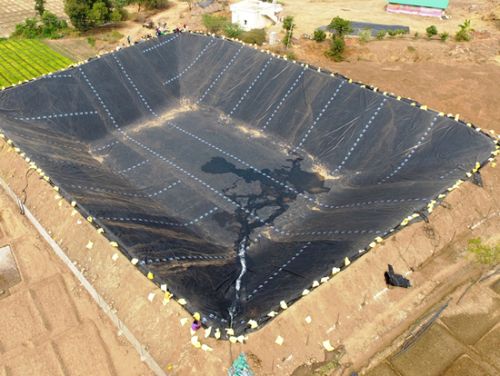

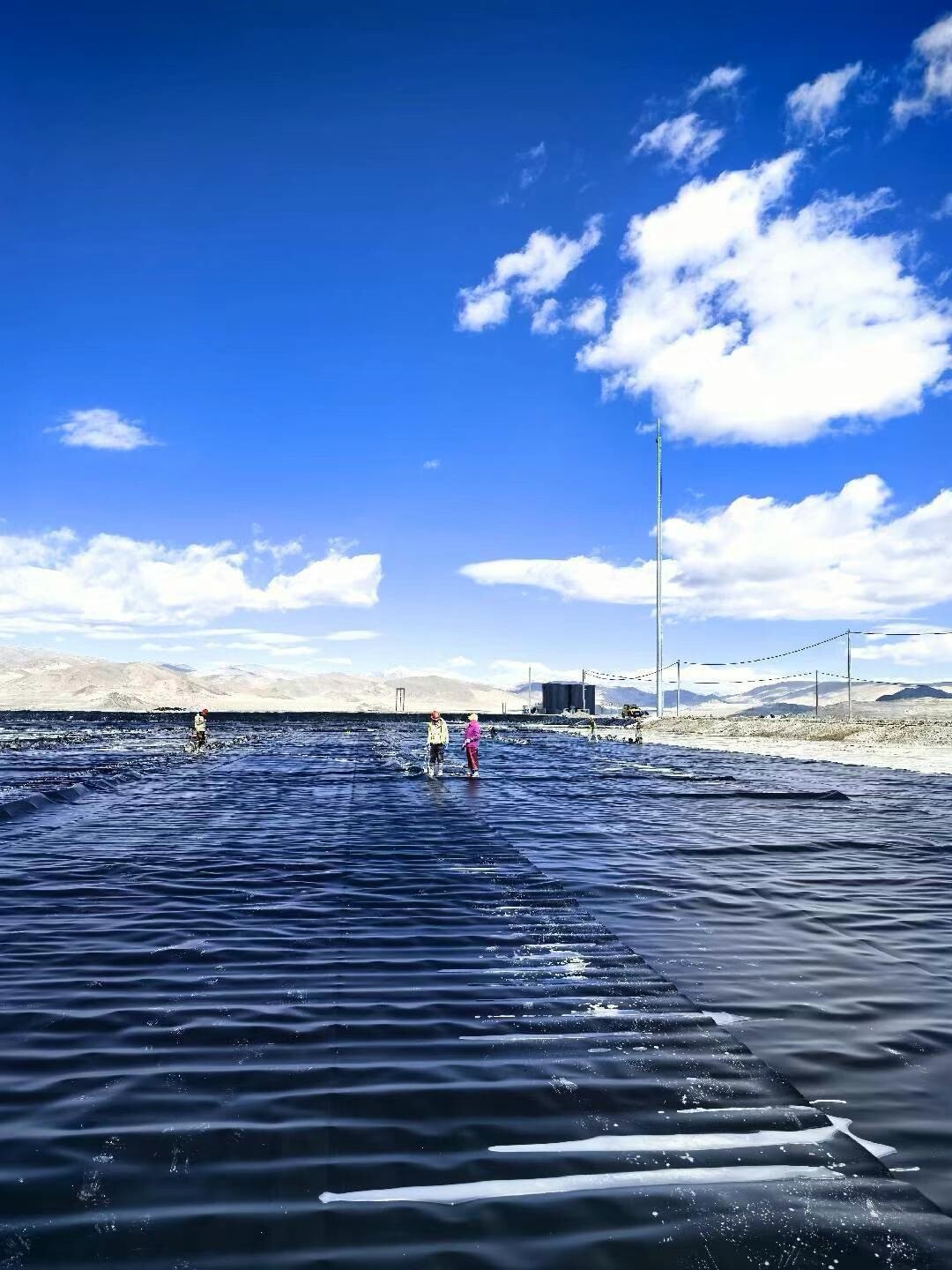

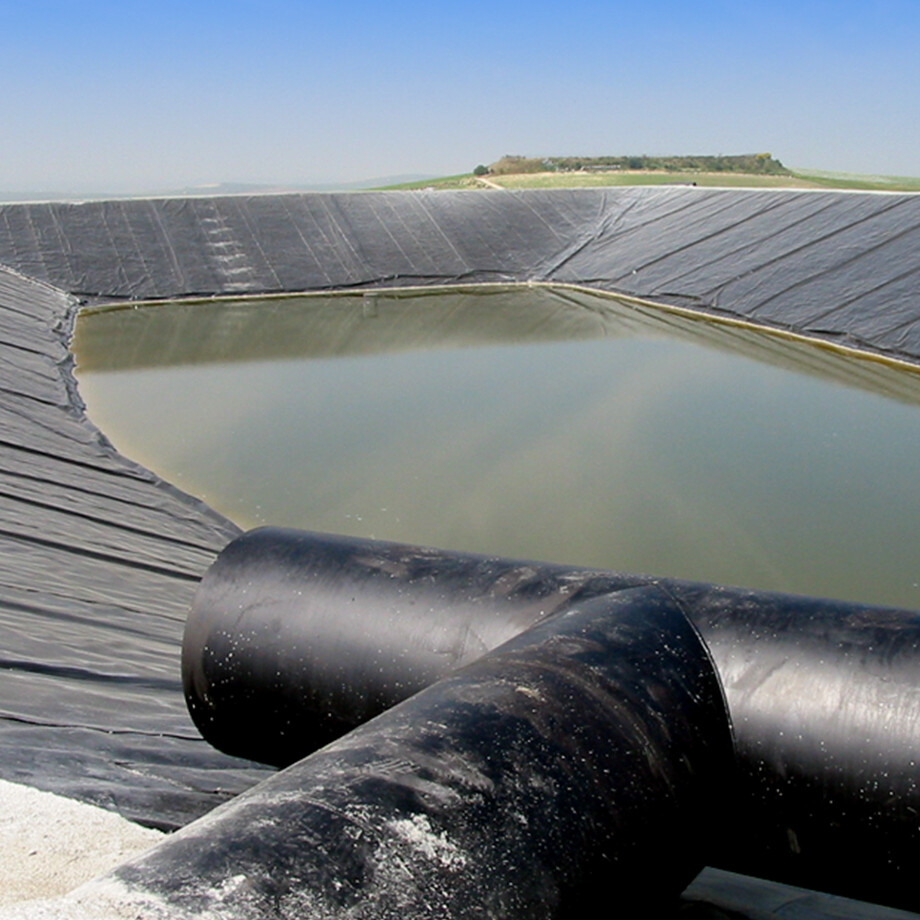

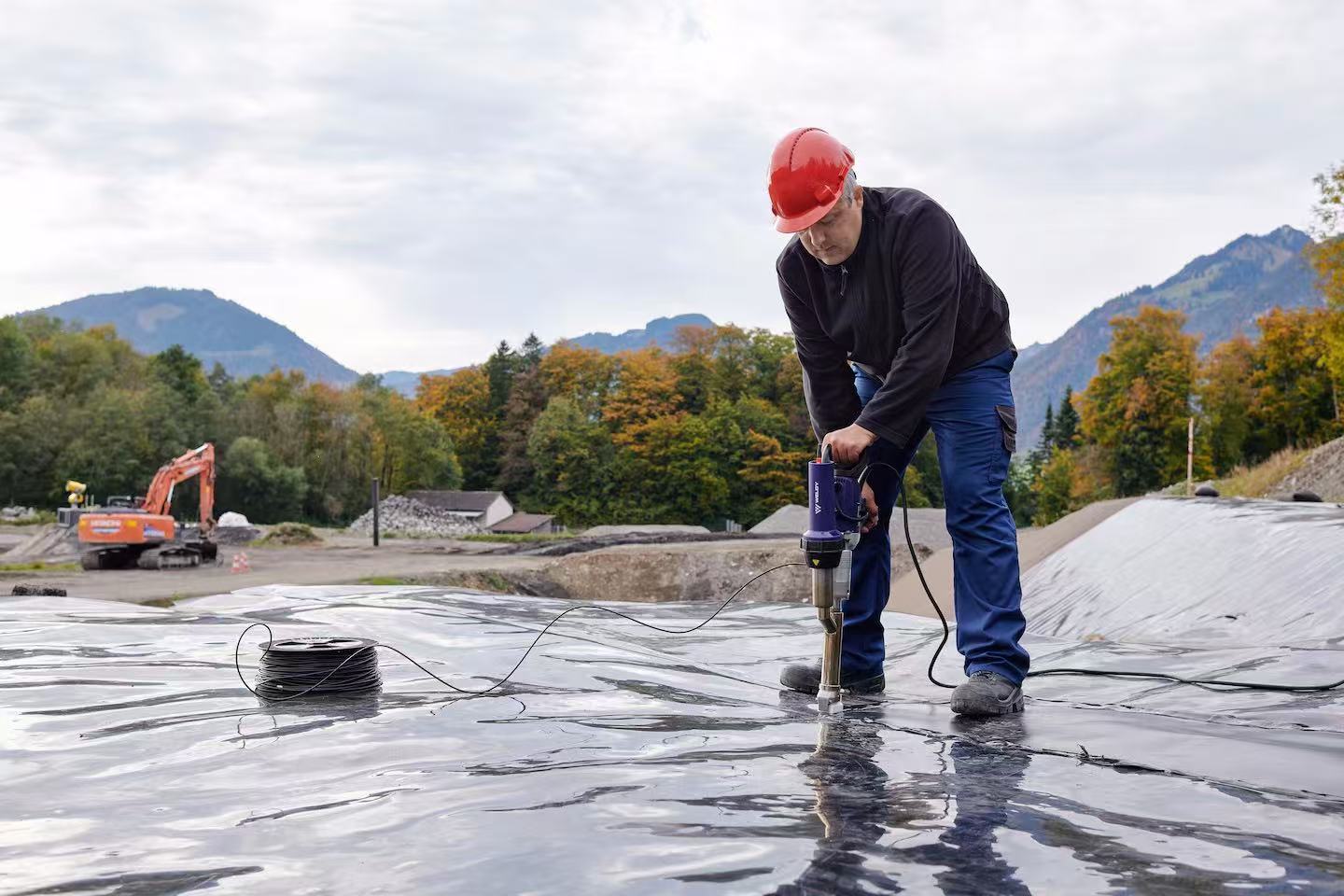

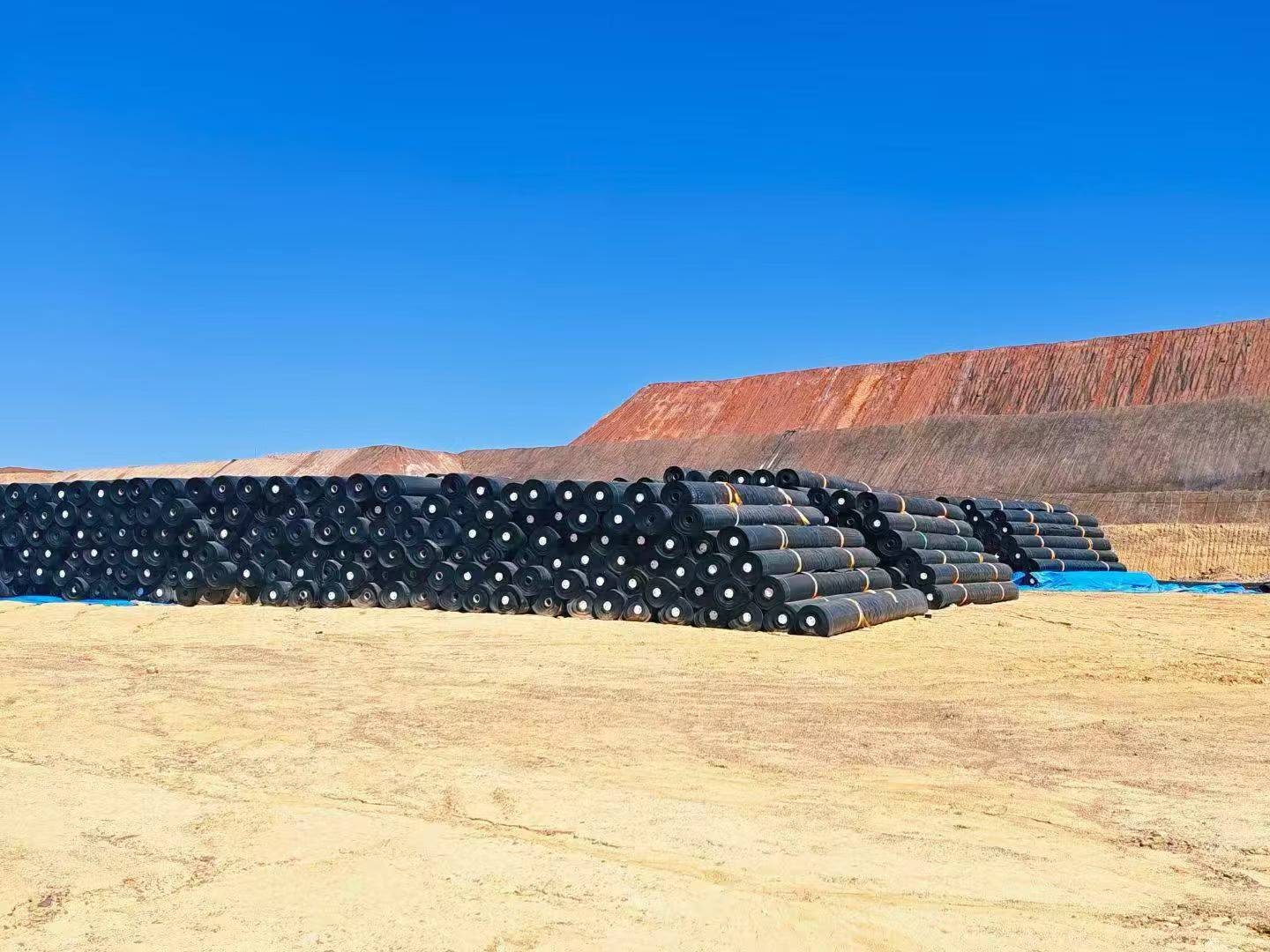

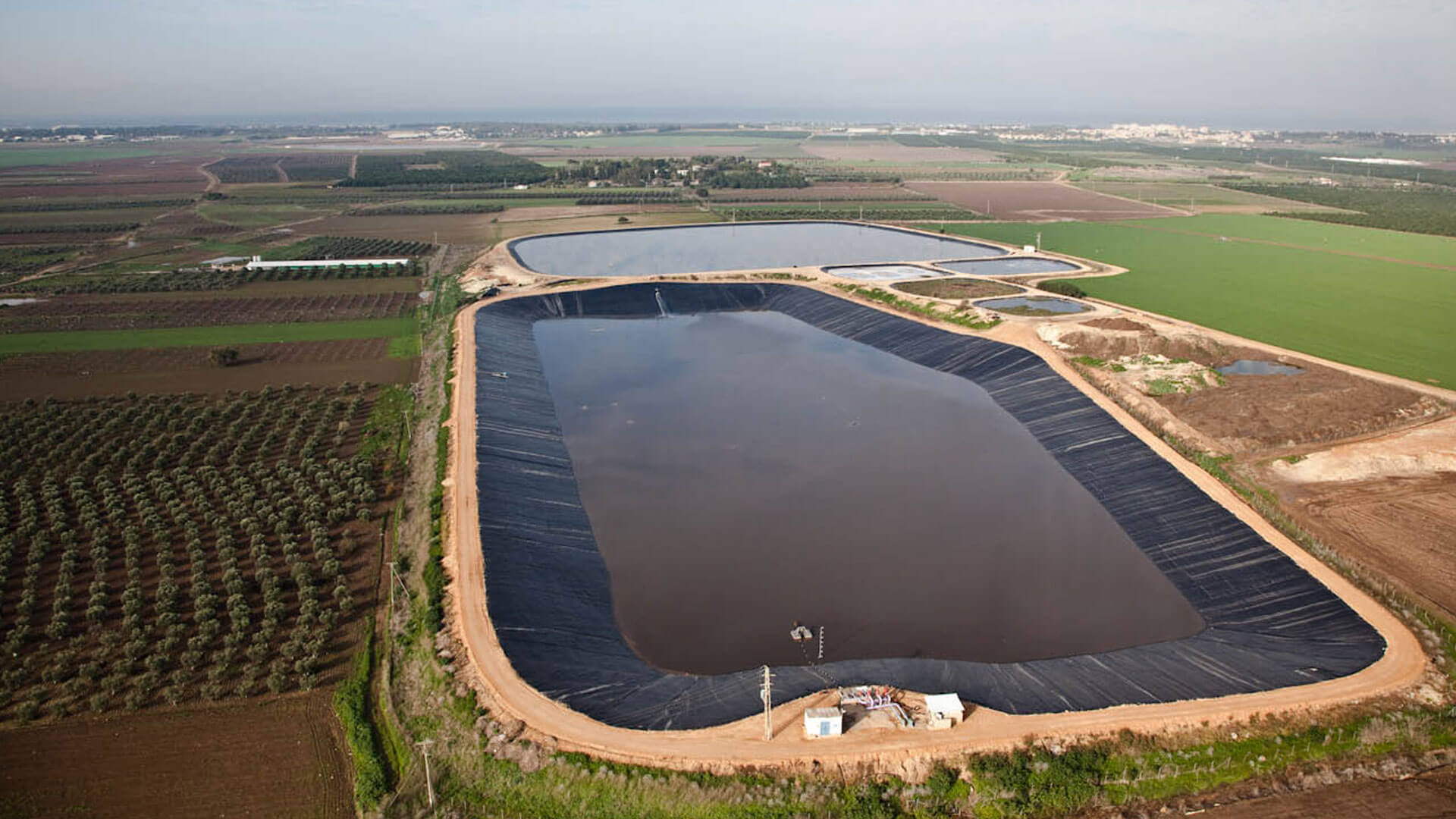

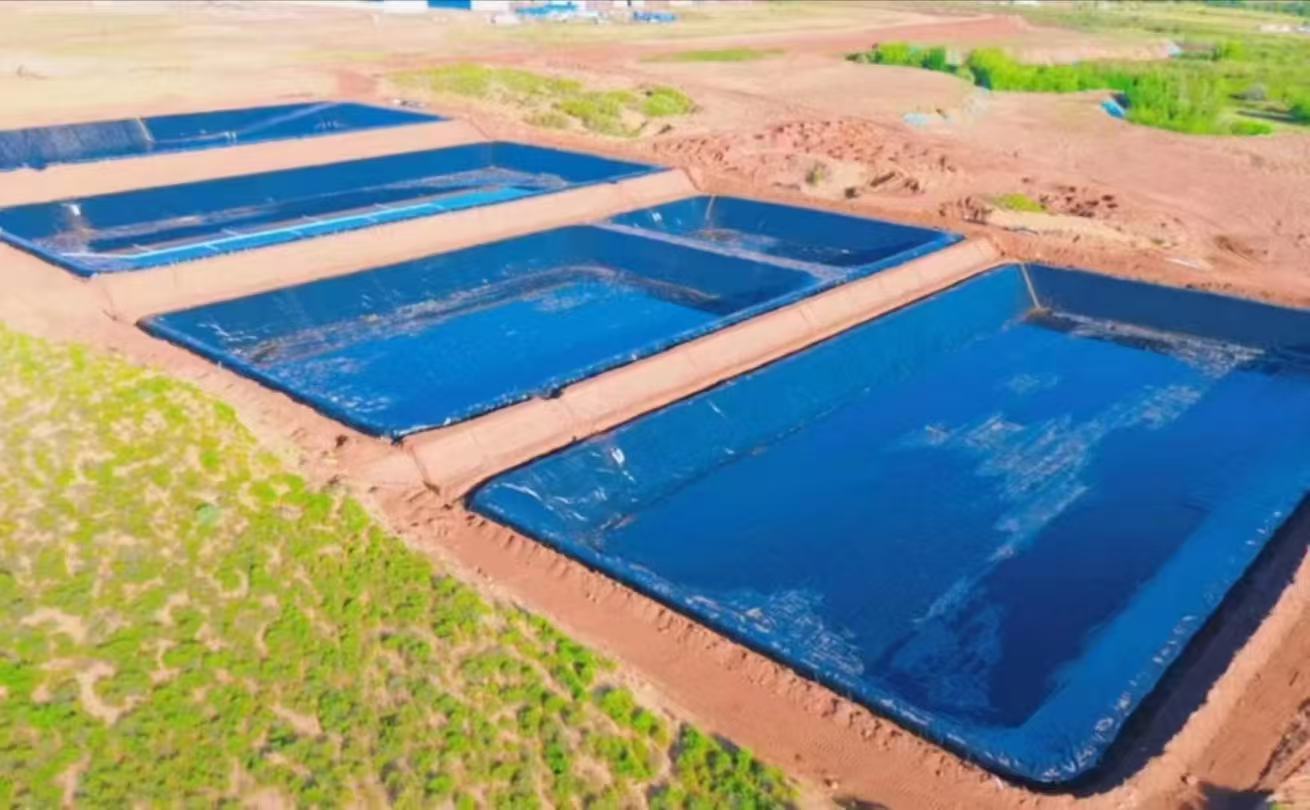

Product Application

HDPE Geomembrane Application
