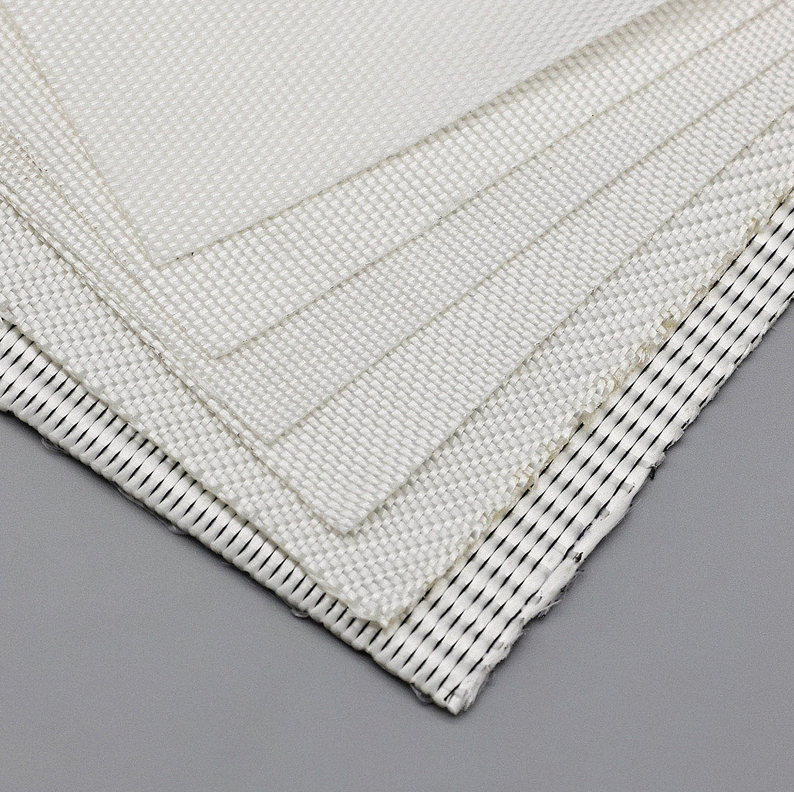

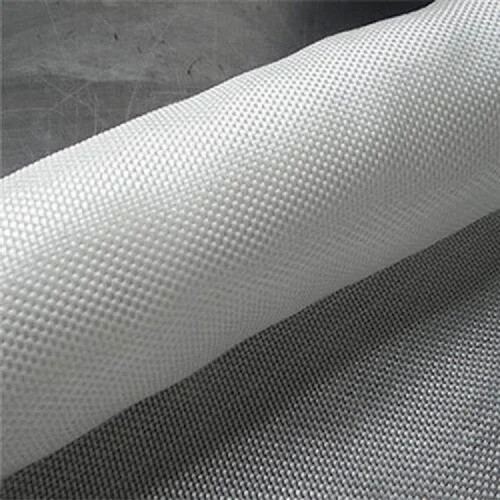

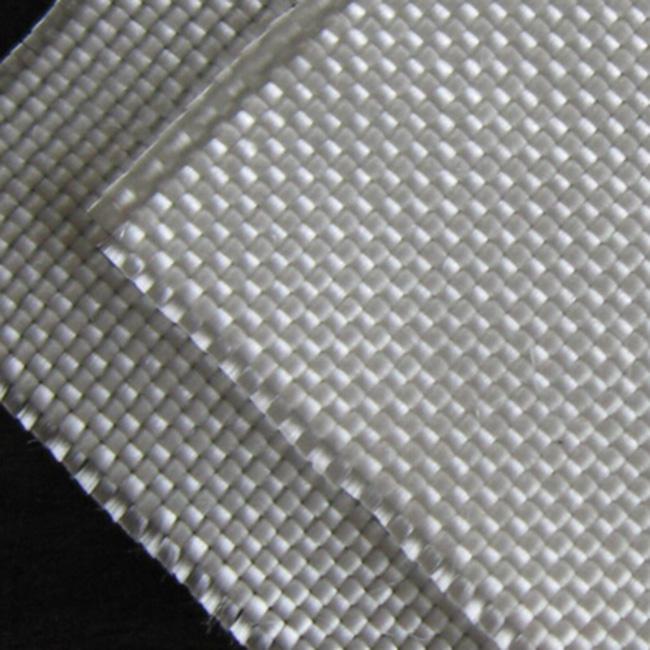

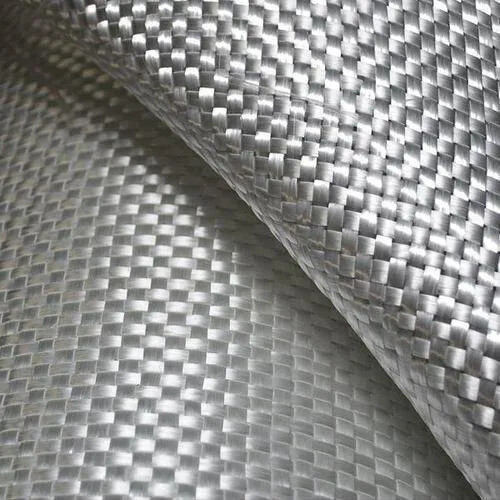

Filament Woven Geotextile
Filament woven geotextiles are geosynthetics made from high-strength polypropylene or polyester filaments, interwoven in a directional warp and weft pattern on advanced equipment. This unique woven structure creates a fabric with dimensionally stable, uniform porosity, and excellent mechanical properties. They are specifically designed for reinforcement and stabilization projects requiring extremely high tensile strength, low elongation, and exceptional durability.
Inquiry Now →
Product Description

PET Woven Geotextile is made of virgin polypropylene fibers. PET woven geotextile is woven and blended by parallel yarns (or tape yarn) with different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications.
Product Parameters
No.Value  SPE.20-1530-2240-2850-3560-4280-56100-70
Item
1Longitudinal Strength kN/m ≥203040506080100
2Latitudinal Strength kN/m ≥15222835425670
3Tensile Strength Elongation %28
 4Trapezoid Tear Strength (Cross direction), kN≥0.30.450.50.60.7511.2
5Puncture Resistance,kN≥1.62.43.244.86. 07.5
6Vertical Permeability coefficient, m/s ≥10-1~10-4
7Equivalent opening size O95,mm0.08-0.5
8Unit Weight g/m2120160200240280340400
Weight Deviation±10%
9Anti-UV ResistanceAs negotiated
