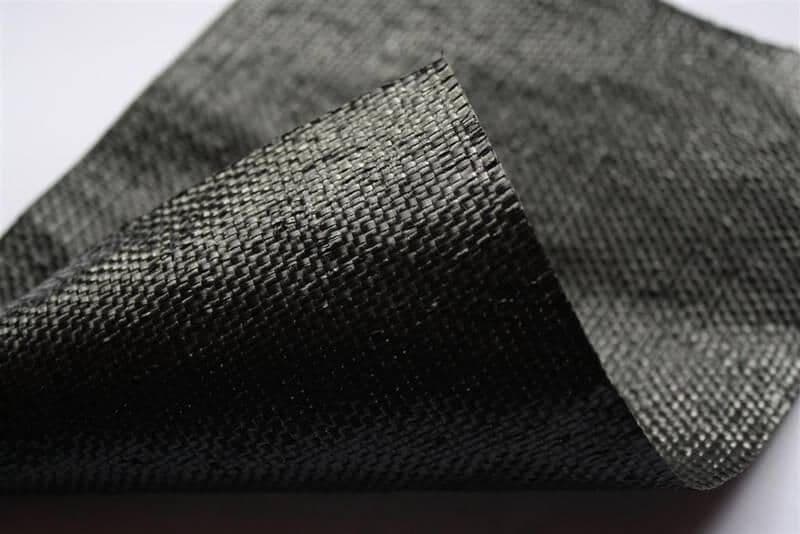

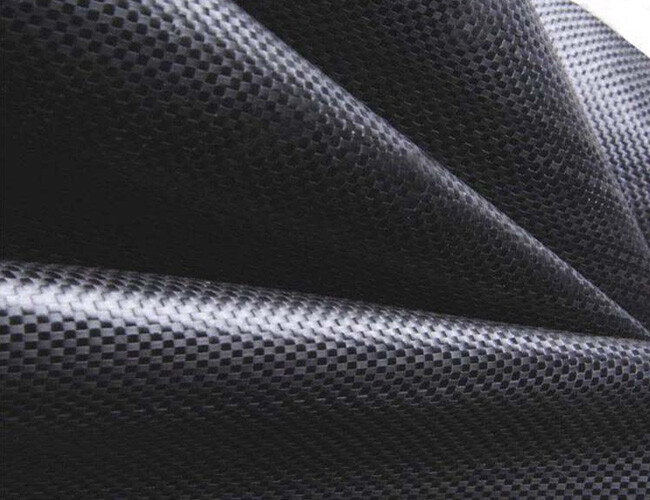

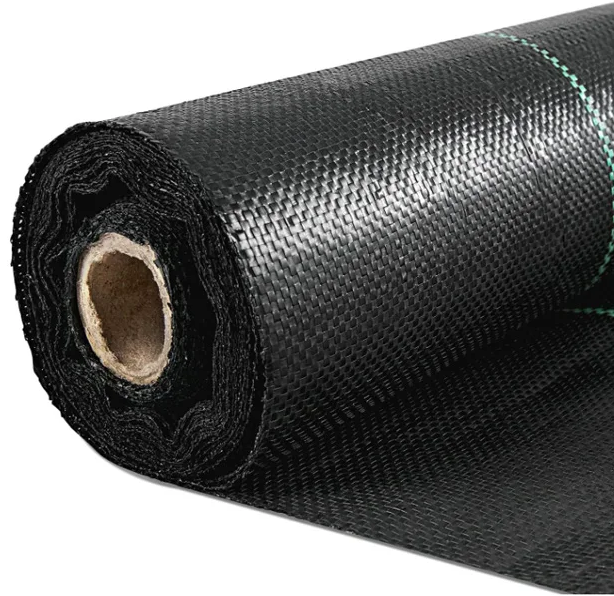

PE Woven Geotextile
PE woven geotextiles, typically woven from high-density polyethylene (HDPE) or polypropylene (PP) flat yarns, are high-strength, durable geosynthetics. They are made by stretching the polymer into flat yarns after melting, then precisely weaving them in the warp and weft directions to create a structurally stable, uniformly porous fabric. With its exceptional tensile strength and rigidity, they are primarily used in civil engineering projects requiring strict separation, reinforcement, and stabilization functions.
WhatsApp：+86 18315841123
Email：salesjames.hao@hotmail.com
Inquiry Now →
Product Description

PE Woven Geotextile is made of virgin polypropylene fibers. polypropylene woven geotextile is woven and blended by parallel yarns (or tape yarn) with different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications.

 PE woven geotextile is highly in strength. woven geotextile is relatively light in weight, strong tensile strength, smaller elongation as well as brilliant stability. It is widely used in roads, pavements, railroads, structures and water conservancy project.

Product Parameters
No.Value  SPE.20-1530-2240-2850-3560-4280-56100-70
Item
1Longitudinal Strength kN/m ≥203040506080100
2Latitudinal Strength kN/m ≥15222835425670
3Tensile Strength Elongation %28
 4Trapezoid Tear Strength (Cross direction), kN≥0.30.450.50.60.7511.2
5Puncture Resistance，kN≥1.62.43.244.86. 07.5
6Vertical Permeability coefficient, m/s ≥10-1~10-4
7Equivalent opening size O95，mm0.08-0.5
8Unit Weight g/m2120160200240280340400
Weight Deviation±10%
9Anti-UV ResistanceAs negotiated
