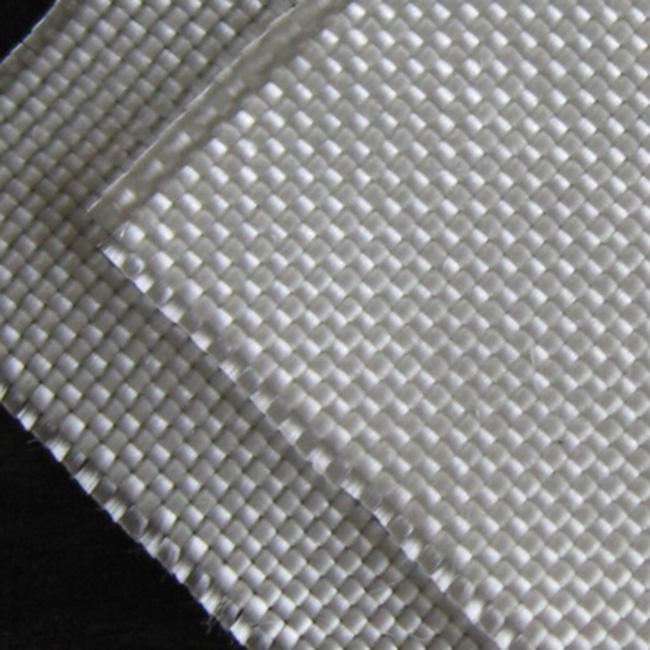

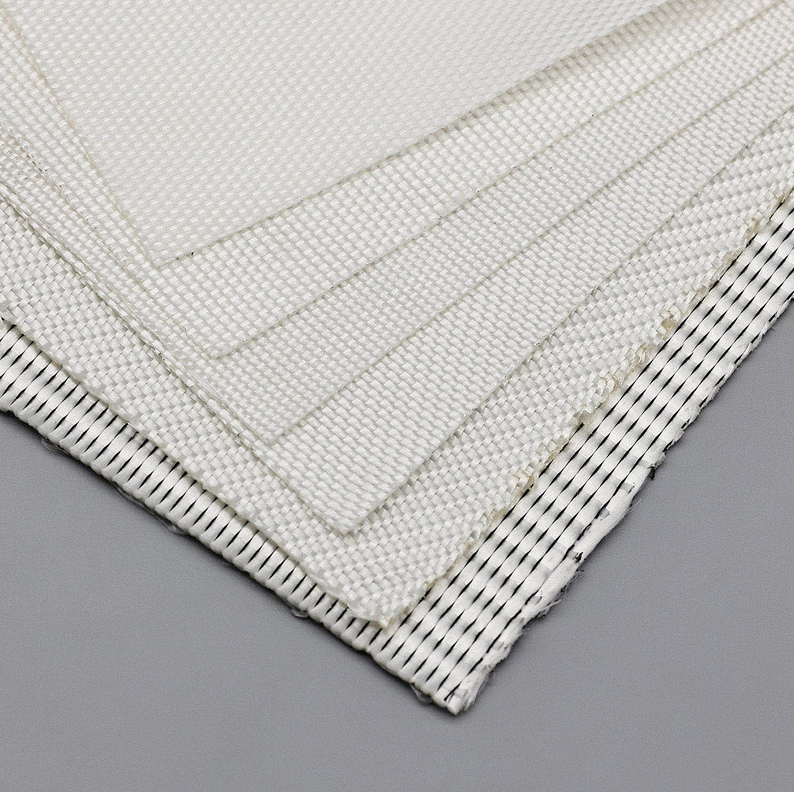

PET Woven Geotextile
PET woven geotextiles are made from high-strength polyester (PET) industrial filaments through a precision weaving process. Polyester's inherent high modulus and low creep properties make this product the material of choice for reinforcement and reinforcement projects requiring stringent long-term strength, durability, and dimensional stability. It is particularly suitable for permanent engineering projects that must withstand long-term, sustained loads.
Inquiry Now →
Product Description

PET Woven Geotextile is made of virgin polypropylene fibers. PET woven geotextile is woven and blended by parallel yarns (or tape yarn) with different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications.
Product Parameters
No.Value  SPE.20-1530-2240-2850-3560-4280-56100-70
Item
1Longitudinal Strength kN/m ≥203040506080100
2Latitudinal Strength kN/m ≥15222835425670
3Tensile Strength Elongation %28
 4Trapezoid Tear Strength (Cross direction), kN≥0.30.450.50.60.7511.2
5Puncture Resistance,kN≥1.62.43.244.86. 07.5
6Vertical Permeability coefficient, m/s ≥10-1~10-4
7Equivalent opening size O95,mm0.08-0.5
8Unit Weight g/m2120160200240280340400
Weight Deviation±10%
9Anti-UV ResistanceAs negotiated
