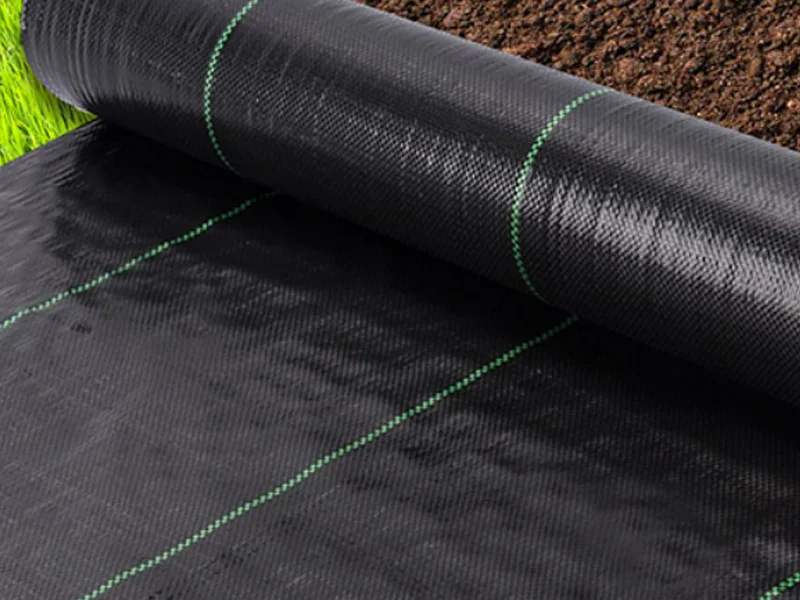

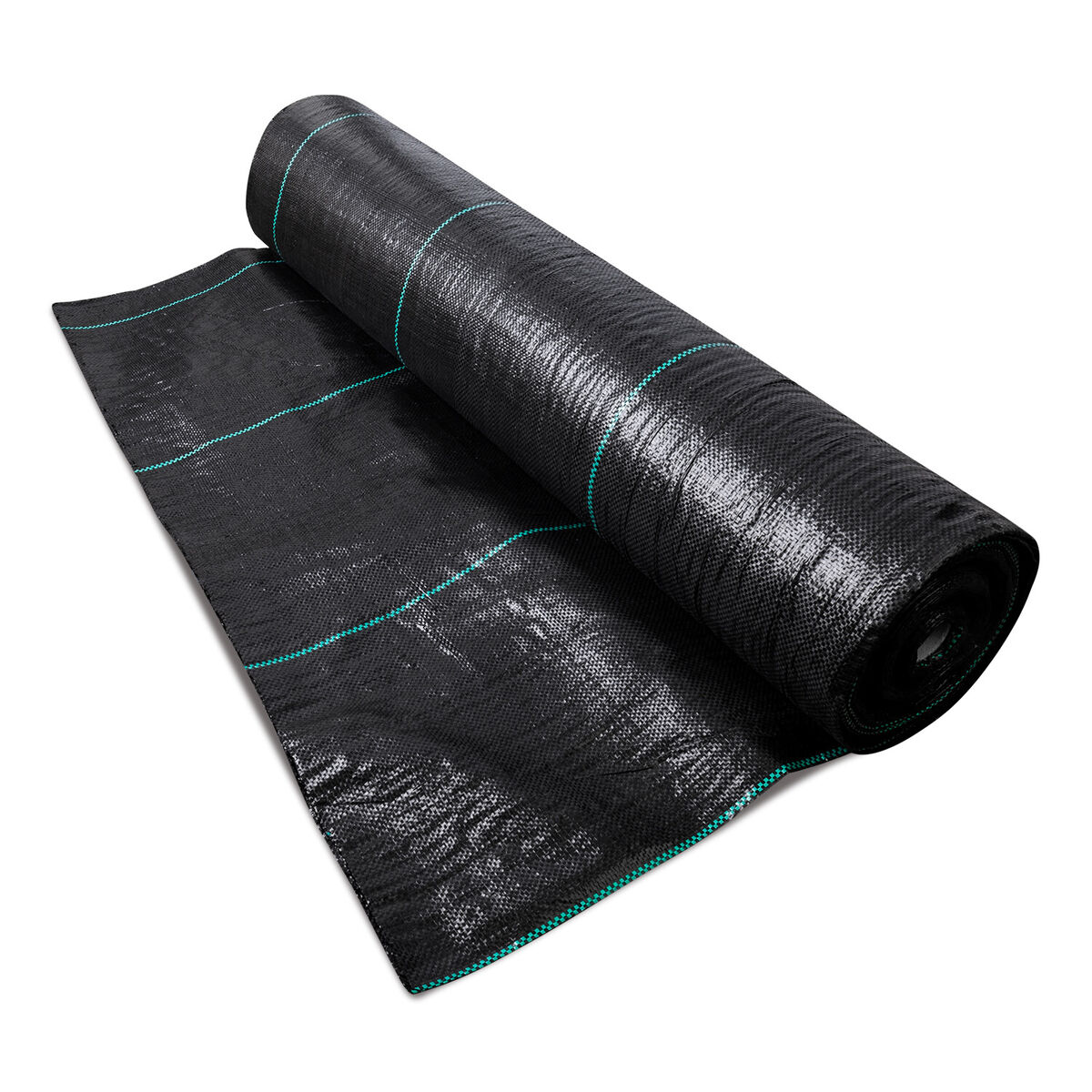

PP Woven Geotextile
PP woven geotextiles are high-strength geosynthetics made from polypropylene (PP) flat yarns woven in the warp and weft directions on industrial looms. This classic woven structure imparts excellent mechanical properties and dimensional stability, making it one of the most widely used and cost-effective geotextiles worldwide, primarily fulfilling the core functions of separation, reinforcement, and stabilization.
Inquiry Now →
Product Description

PET Woven Geotextile is made of virgin polypropylene fibers. PET woven geotextile is woven and blended by parallel yarns (or tape yarn) with different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications.
Product Parameters
No.Value  SPE.20-1530-2240-2850-3560-4280-56100-70
Item
1Longitudinal Strength kN/m ≥203040506080100
2Latitudinal Strength kN/m ≥15222835425670
3Tensile Strength Elongation %28
 4Trapezoid Tear Strength (Cross direction), kN≥0.30.450.50.60.7511.2
5Puncture Resistance,kN≥1.62.43.244.86. 07.5
6Vertical Permeability coefficient, m/s ≥10-1~10-4
7Equivalent opening size O95,mm0.08-0.5
8Unit Weight g/m2120160200240280340400
Weight Deviation±10%
9Anti-UV ResistanceAs negotiated
