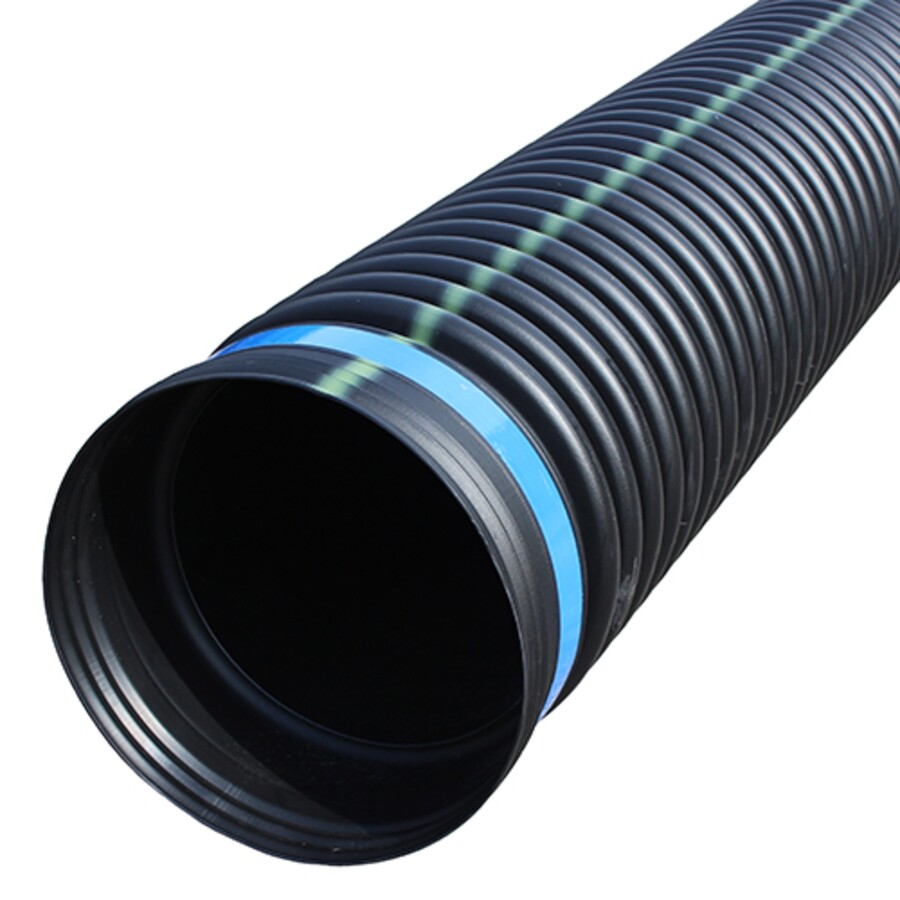

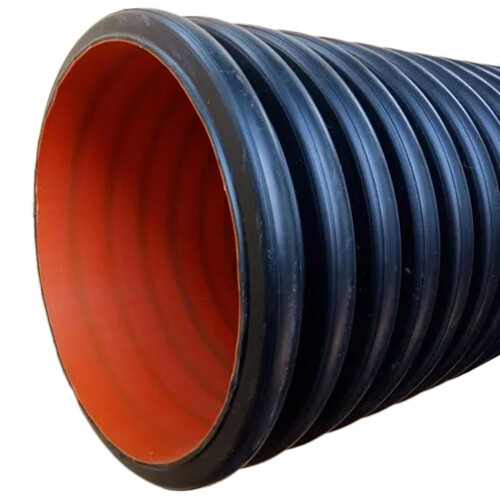

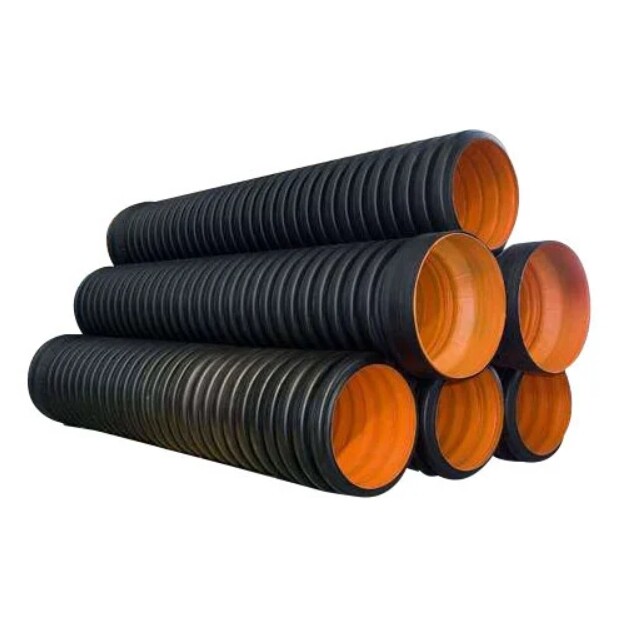

Double Wall Corrugated Pipe
Excellent resistance to external pressure: The unique double-wall structure enables it to withstand greater external pressure and is not easy to deform.
Inquiry Now →
Product Description

Its main features are:

1. Excellent resistance to external pressure: The unique double-wall structure enables it to withstand greater external pressure and is not easy to deform.

2. Large flow: The inner wall is smooth, the water flow resistance is small, and the water flow capacity is strong.

3. Good chemical stability: Acid and alkali resistant, corrosion resistant, and can adapt to a variety of harsh environmental conditions.

4. Light weight and convenient construction: easy to transport and install, reducing construction costs and labor intensity.

5. Low cost: Compared with traditional pipes, it has a higher cost performance.

HDPE double-wall corrugated pipe has many application areas:

1. Municipal drainage: used for urban sewage and rainwater discharge pipeline systems.

2. Farmland irrigation: transport farmland water to ensure the irrigation needs of crops.

3. Communication cable sheath: protect communication cables from external damage.

Product Parameters
nominal outside diameterDN/ONMinimum average outer diameter dcm.minMaximum average outer diameter dcm.minMinimum Average Inner Diameter dcm.minMinimum layer wall thickness eminMinimum inner wall thickness  e1minlength of engagementamin
110109.4110.49010.832
125124.3125.41051.1135
160159.1160.51341.2142
200198.8200.61671.41.150
250248.5250.82091.71.455
315313.23162631.91.662
400397.6401.23352.3270
500497501.54182.82.880
630626.3631.95273.33.393
800795.2802.46694.14.1110
10009941003.6100555130
12001192.81203.6100555150
