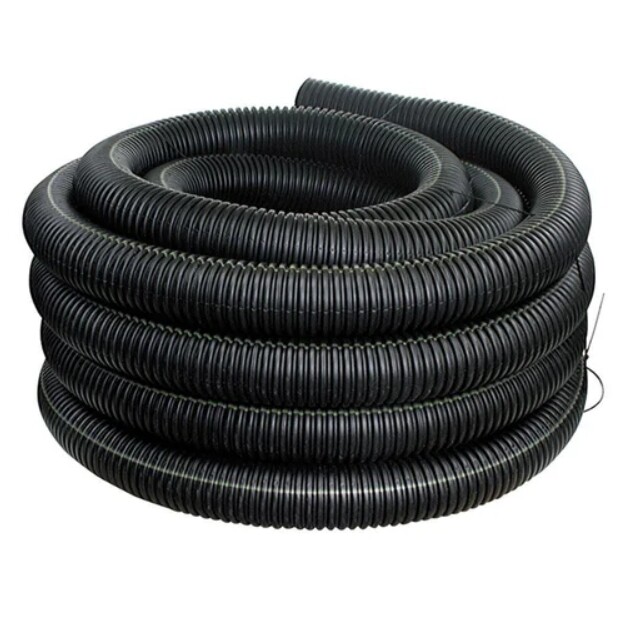

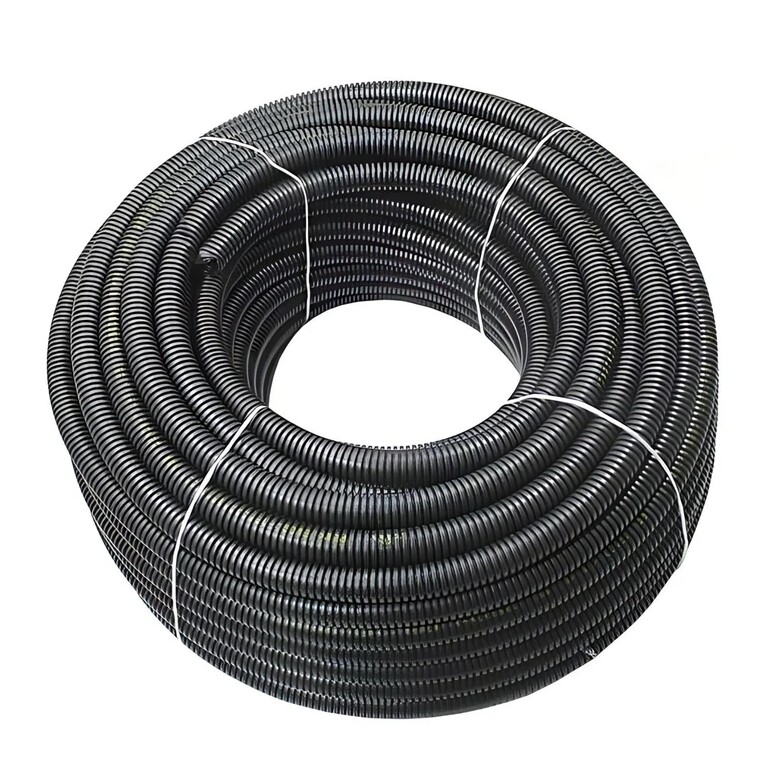

HDPE carbon corrugated pipe
HDPE carbon corrugated pipe is a pipe with many excellent properties.
Inquiry Now →
Product Description
HDPE carbon corrugated pipe is a pipe with many excellent properties.

Features:

1. High strength: can withstand greater external pressure, not easy to deform and rupture.For example, in some occasions that need to be buried deep or bear heavy loads, such as drainage pipes under roads, HDPE carbon corrugated pipes can maintain good performance.

2. Good corrosion resistance: can resist the erosion of various chemicals and extend service life.Even in harsh chemical environments, such as underground pipeline laying near chemical plants, it can operate stably.

3. Good flexibility: easy to bend and construct, adapt to complex terrain and pipeline layout.

Like laying in mountainous areas or beside winding roads, its flexibility has a great advantage.


Application areas:

1. Power engineering: as a protective casing for cables.

2. Communication engineering: protect communication cables.

3. Municipal drainage: used in urban drainage systems.

Product Parameters
MaterialPE polyethylene
Operating temperature-40℃~+90℃
ColorBlack,other color available upon request
PerformanceTest conditions (state)Test methodTest dataData unit
Melt flow rate230℃ASTM D12382g/10min
Density--ASTM D7920.9g/cm2
Tensile strength at yield point--ASTM D638265g/cm2
Elongation at yield point--ASTM D6388%
Flexural elasticity system--ASTM D79013100kg/cm2
Rockwell hardness--ASTM D78581R scale
Heat deformation temperature--ASTM D64890°C
Izod impact strength--ASTM D25618/137kg-cm/cm
Drop ball impact strength--LCY22ft-lb
Shrinkage--ASTM D95514%
Hose specifica tionsInner diameter (mm)Outer diameter (mm)Wall thicknes s(mm)Weight(k g/m)Pitch(m m)OD and Height( m)Packagi ng unit (m)
AD42.030.0± 2.042.0± 1.00.95±0.2 50.28100.90*0.5 0200
AD67.050.0± 2.067.0± 1.01.25±0.3 50.45161.40*0.5 5200
AD105.080.0± 3.0105.0± 3.01.35±0.4 50.82261.60*0.6 0100
AD128.0100.0± 4.0128.0± 3.01.70±0.81.2331.80*0.8 0100/200
AD185.0150.0± 4.0185.0± 5.02.10±0.92.4502.2*1.250
AD280.0200.0± 4.0280.0± 5.02.15±0.8 54662.4*1.440
Note: The above table refers to the following standards:GB/T13381.9
